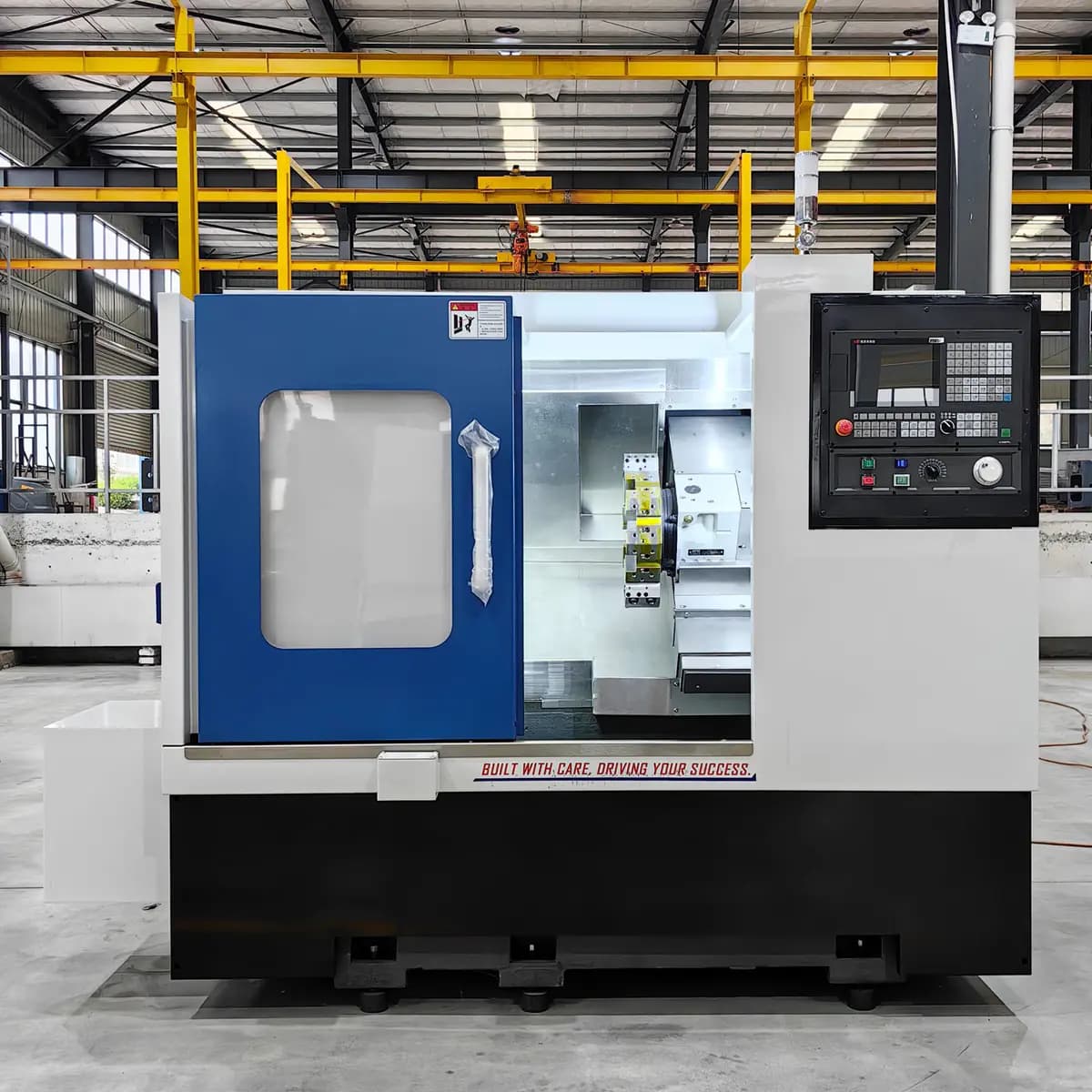

XT05 Slant Bed CNC Lathe
XT Series – Servo tool turret, without tailstock (optional servo power tool turret for turn-mill)
5.0
Brand Name:
HERIDIK
Place of Origin:
China
Model Number:
XT05
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
The XT series is a type of machine tool specially designed for heavy cutting of disc-shaped and short shaft parts. It features an integral bed with a widened, reinforced and low center of gravity design to reduce vibrations during heavy cutting. The 45° inclined saddle layout in the X direction effectively resists forces in both horizontal and vertical directions, eliminates backlash in the lead screw, and ensures better geometric symmetry of the cutting tool during processing, reducing lateral loads on the tool. This results in longer tool life and improved processing accuracy.
XT Series – Servo tool turret, without tailstock (optional servo power tool turret for turn-mill)
| Model | XT05 |
| Max. swing diameter | 600mm |
| Max. machining diameter | 460mm |
| Max. machining length | — |
| Spindle nose | A2-5 |
| Spindle motor power | 5.5/7.5 KW |
| Spindle bore | 48mm |
| Max. spindle speed r/min | 4000 |
| Specification of the sub-spindle | — |
| X axis | 280mm |
| Z axis | 450mm |
| X axis rapid feed speed | 25m/min |
| Z axis rapid feed speed | 25m/min |
| X axis Max. torque of motor | 25.2N.m |
| Z axis Max. torque of motor | 25.2N.m |
| Hydraulic clamping Chuck Size | 8” |
| Servo Tool Turret | 8/12 station |
| OD tool size | 25x25mm |
| Tailstock travel | — |
| Machine size (L x W x H) cm | 180/200x142x165 |
| Standard weight | 2.8T |
