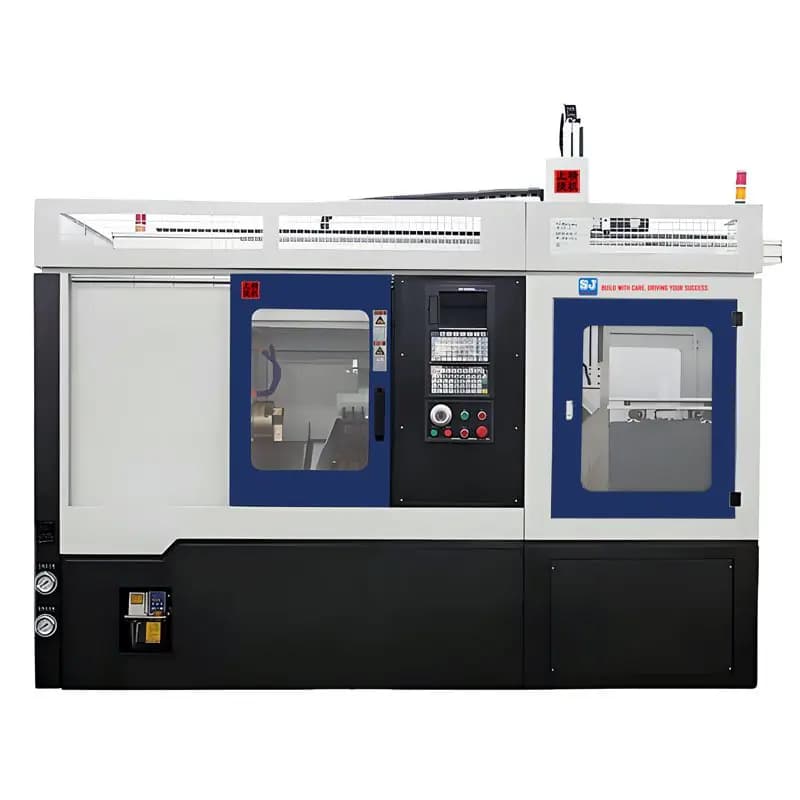

ET04D Dual Electric Spindle CNC Lathe
Both the main and auxiliary spindles adopt permanent magnet synchronous electric spindles, which have high power and strong force, without belt drive. This enhances the dimensional stability of the machine tool during high-speed turning and further improves the surface finish of the workpiece. The spindle guide rails use large-sized and high-precision roller linear guides, which not only ensure the machining rigidity of the machine tool but also improve its machining accuracy.
Combined with the corresponding power head, it can achieve turning and milling compound functions, enabling the completion of all processing procedures for complex parts of customers in a single clamping.
Permanent magnet synchronous electric main and sub spindles
| Model | ET04D |
| Max. swing diameter | 530mm |
| Max. machining diameter on the saddle | 140mm Max. machining diameter on the saddle |
| Max. bar through diameter | 28mm 38mm |
| Spindle nose | A2-4 A2-5 |
| Spindle motor power | 4 / 5.5-12KW Permanent Magnet Synchronous Motor Spindle |
| Spindle bore | 38mm 48mm |
| Max. spindle speed | 6000r/min |
| X1 axis | 500mm |
| X2 axis | 500mm |
| Z1 axis | 430mm |
| Z2 axis | 400mm |
| X axis rapid feed speed | 25m/min |
| Z axis rapid feed speed | 25m/min |
| X axis Max. torque of motor | 18N.m |
| Z axis Max. torque of motor | 18N.m |
| Pneumatic clamping | Spring collet |
| Hydraulic clamping Chuck Size | 5” |
| Machine size (L x W x H) cm | 240x135x160 |
| Standard weight | 3550KG |
