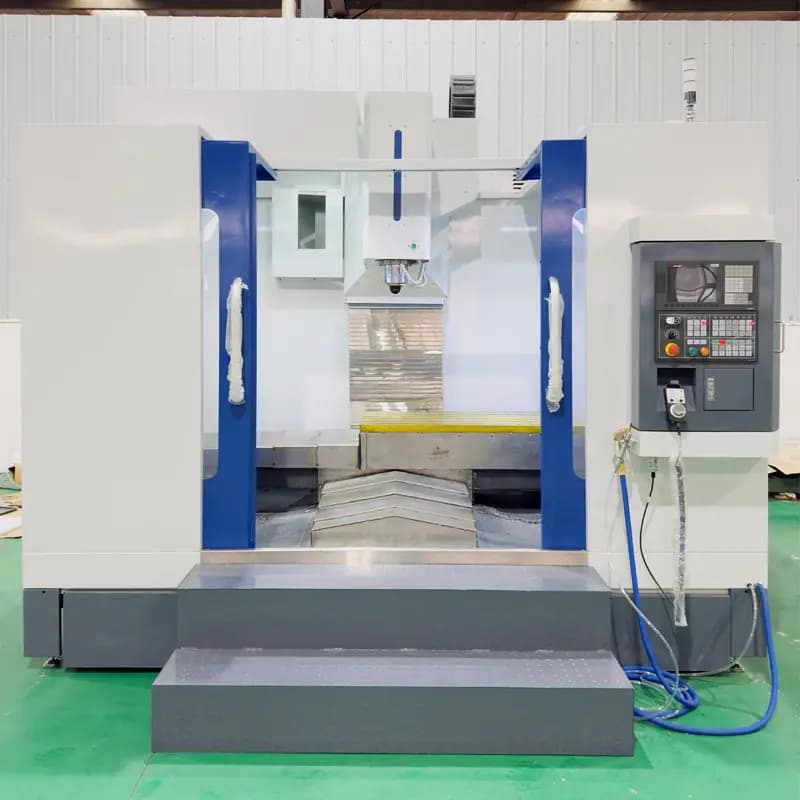

VMC1160 Vertical Machining Center
VMC series machine tools adopt a low center of gravity design, increase the span of the column, and widen the width of the Y-axis base to enhance the stability of the machine tool. By applying finite element analysis (FEM), the shape and position of the reinforcing ribs of the castings are optimized to achieve the best strength of the bed. Additionally, special reinforcement structures are implemented on the Y-axis base and the Z-axis column to ensure that the machine tool maintains good accuracy during long-term operation. At the same time, the bed structure is more conducive to heavy cutting, improving work efficiency and tool life.
VMC Series – FEM-optimized, low center of gravity
| Model | VMC1160 |
| Workbench size | 1300x600mm |
| Workbench T-slot (number - size * pitch) | 5-18x100mm |
| Max. load capacity of the workbench | 800KG |
| X-axis travel distance | 1110mm |
| Y-axis travel distance | 610mm |
| Z-axis travel distance | 600mm |
| Distance from the center of spindle to the guide rail of the column | 660mm |
| Distance from the Spindle face to the worktable surface | 120-720mm |
| Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed | 30m/min |
| X axis Max. torque of motor | 55.8N.m |
| Y axis Max. torque of motor | 55.8N.m |
| Z axis Max. torque of motor | 105N.m |
| Max. spindle speed | 8000/12000rpm |
| Spindle taper hole | BT40 |
| Spindle motor power | 11/15 KW |
| Tool magazine capacity | Disc-Type 24Tools |
| Max. weight of cutting tools | 8 KG |
| Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H)cm | 245x218x255 |
| Standard weight | 8.5T |
