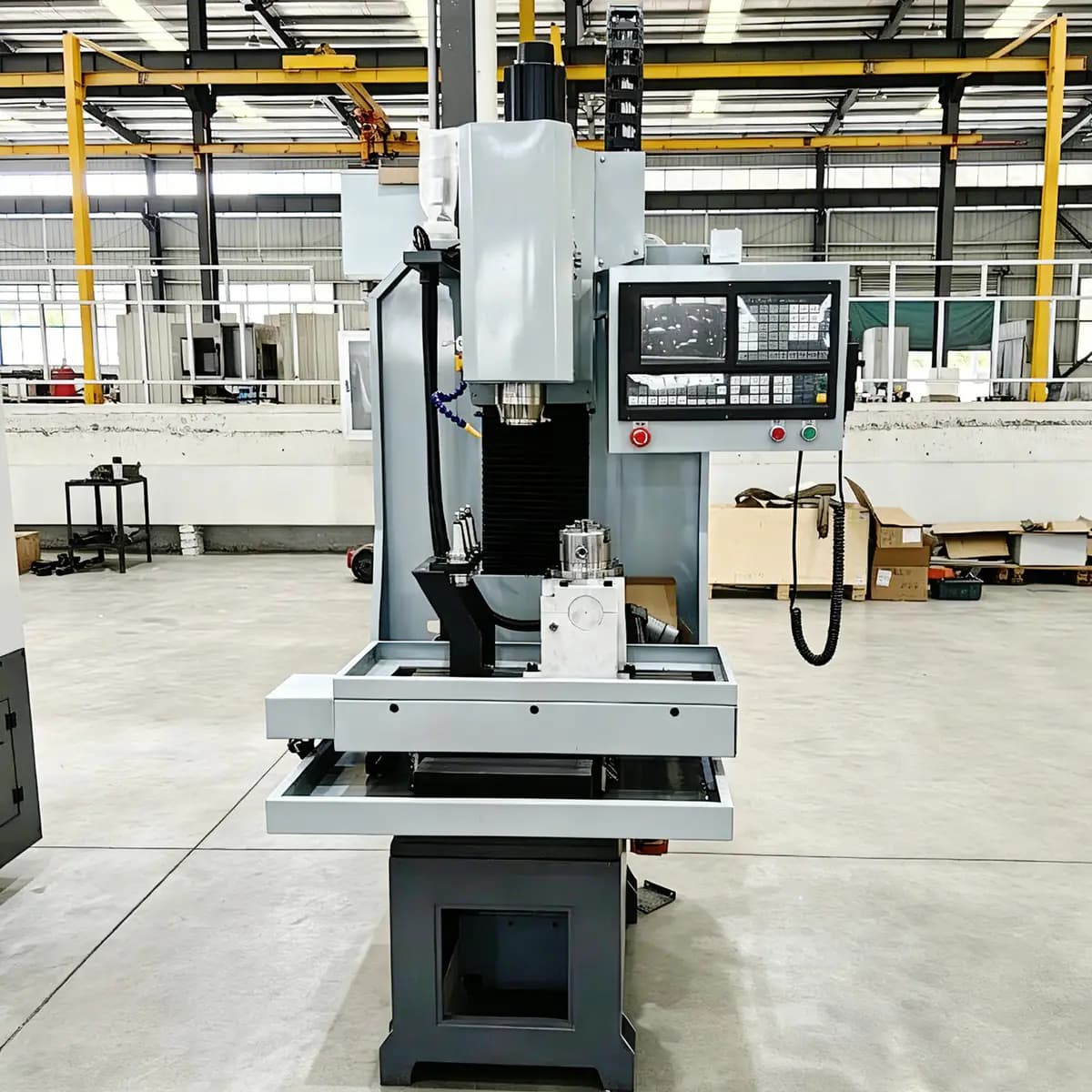

CNC530 CNC Drilling and Milling Machine
CNC Series – HT300 integral bed, three-axis linkage
5.0
Brand Name:
HERIDIK
Place of Origin:
China
Model Number:
CNC530
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
CNC series of numerically controlled drilling and milling machines adopt an integral bed structure made of HT300 material, which features strong rigidity and high stability. They are equipped with 35mm P-level precision linear guides and Ø40 C-level ground ball screws, with 6 slides on the X-axis. Combined with the CNC numerical control system, they can achieve three-axis linkage and complete the drilling and milling processing of complex parts.
CNC Series – HT300 integral bed, three-axis linkage
| Model | CNC530 |
| Workbench size | 900x280mm |
| Workbench T-slot (number - size * pitch) | 3-14x80mm |
| Max. load capacity of the workbench | 150KG |
| X-axis travel distance | 500mm |
| Y-axis travel distance | 300mm |
| Z-axis travel distance | 500mm |
| Distance from the spindle face to the worktable surface | 100-600mm |
| X,Y,Z fast movement speed | 25m/min |
| X axis Max. torque of motor | 25.2N.m |
| Y axis Max. torque of motor | 25.2N.m |
| Z axis Max. torque of motor | 34.5N.m |
| Max. spindle speed | 8000 rpm |
| Spindle taper hole | BT30 / BT40 |
| Spindle motor power | 3.7/5.5 KW |
| Tool magazine capacity | （Optional configuration） Umbrella-Type 12Tools |
| Max. weight of cutting tools | 8 KG |
| Air source pressure | 0.5-0.8 MPa |
| Machine size (L x W x H) cm | 155x155x210 |
| Standard weight | 1.8 T |
