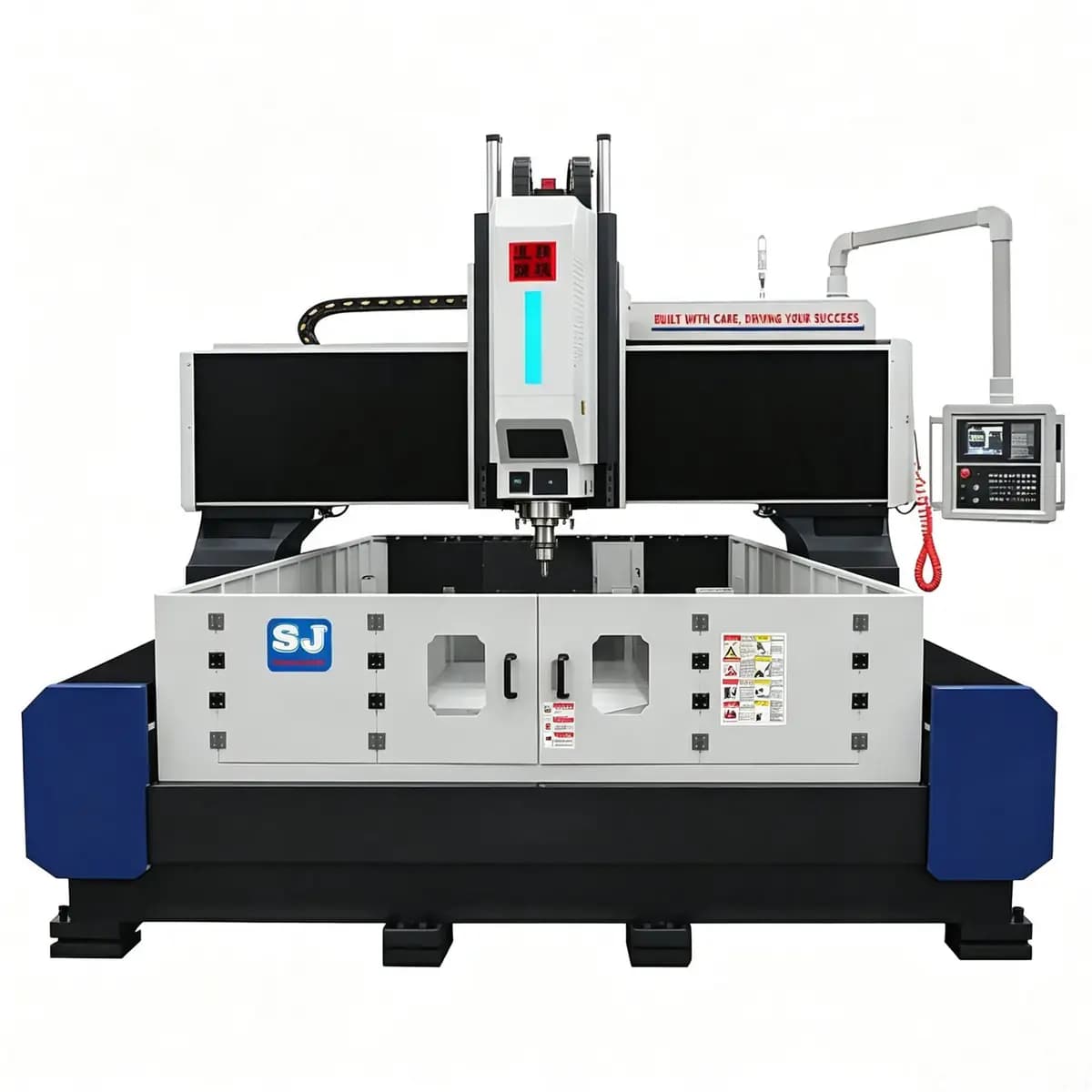

GNC3020 CNC Gantry Boring and Milling Machine
GNC Series – Drilling, tapping and milling of large parts
5.0
Brand Name:
HERIDIK
Place of Origin:
China
Model Number:
GNC3020
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
The GNC series CNC gantry boring and milling machine, inheriting the strong rigidity and high stability of gantry machines, is equipped with high-rigidity spindles, advanced CNC systems and other components. It can efficiently perform drilling, tapping and milling surface processing on large workpieces, large plates, wind turbine flanges, discs, rings and other workpieces.
GNC Series – Drilling, tapping and milling of large parts
| Model | GNC3020 |
| Workbench size mm | 3000x2000 |
| Max. drilling diameter | Φ90 |
| Max. tapping diameter | M36 |
| Distance from the spindle face to the worktable surface | 200-800mm |
| Spindle taper hole | BT50 (with a center water outlet function) |
| Spindle motor power | 15/22 KW |
| Max. spindle speed | 3000rpm |
| X-axis travel distance | 3000mm |
| Y-axis travel distance | 2000mm |
| Z-axis travel distance | 600mm |
| X,Y,Z fast movement speed | 10/12/12 m/min |
| Spindle taper hole | 0.02/2000mm |
| Tool magazine capacity | Straight-line tool magazine |
| Max. weight of cutting tools | （Optional configuration）Disc-Type 24Tools |
| Machine size (L x W x H)cm | 8KG(BT40) / 15KG(BT50) |
| Standard weight | 4500x420x220 |
