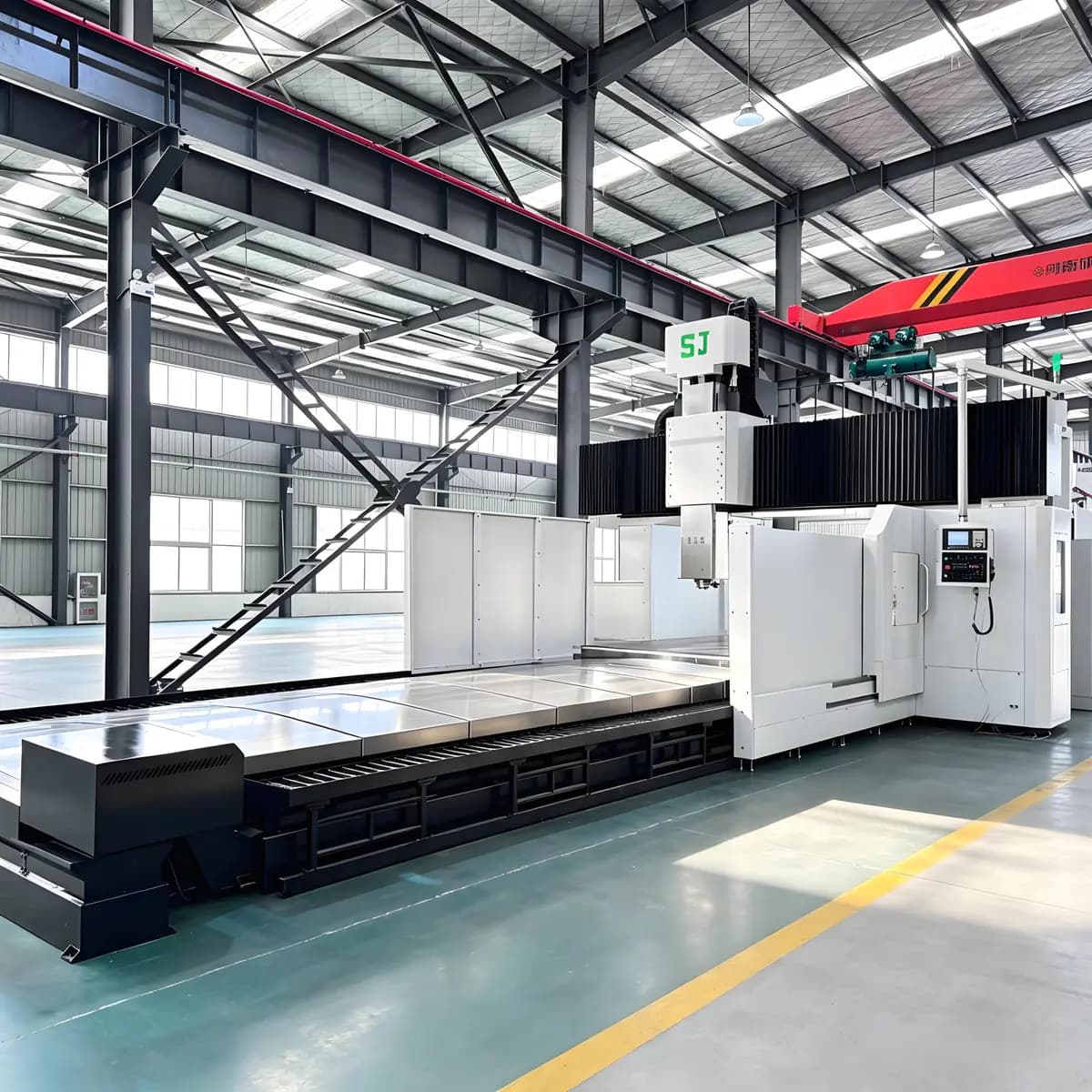

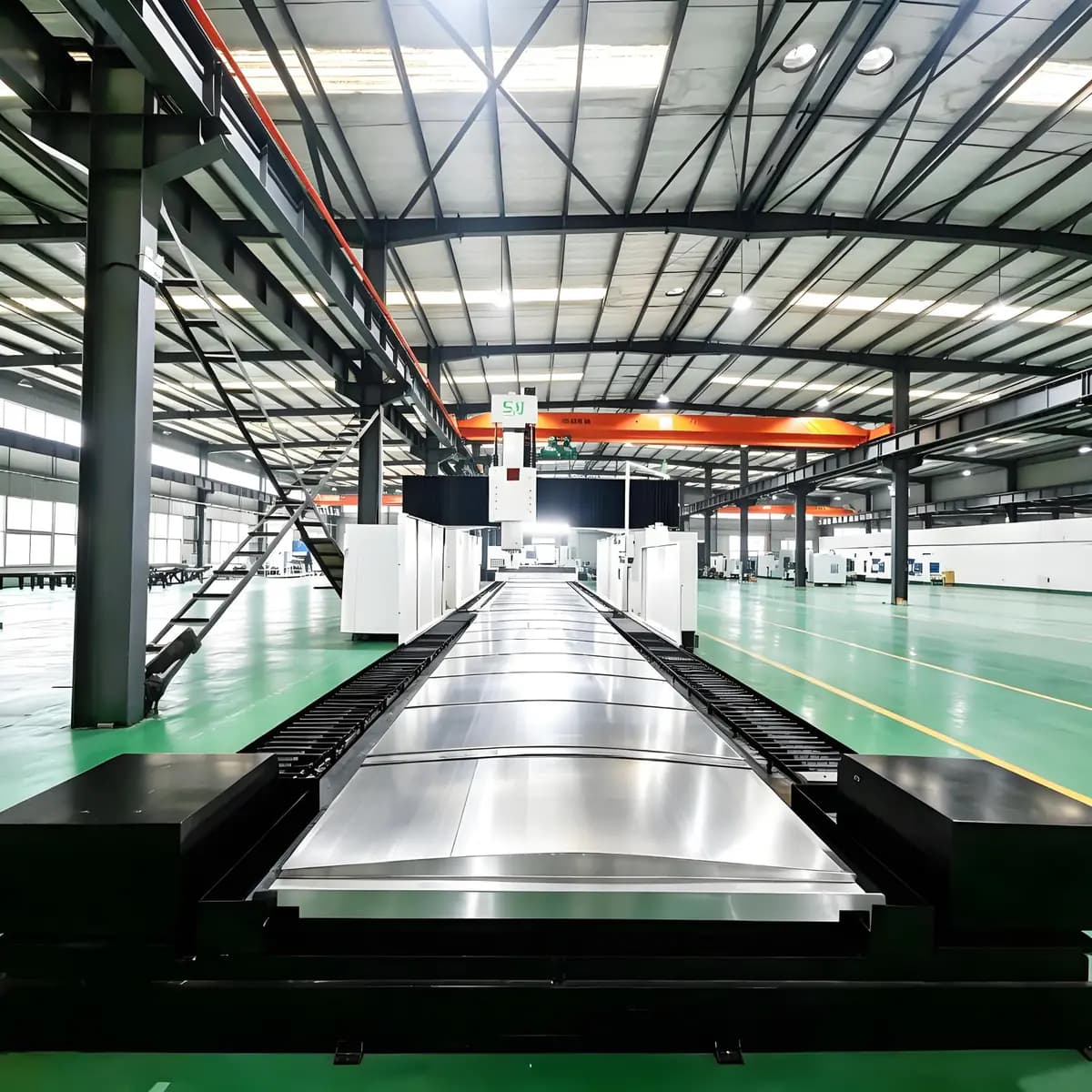

GMC8038 Gantry Machining Center
GMC series gantry machine tools, inheriting the characteristics of gantry machine tools such as strong rigidity, symmetrical structure and high stability, are equipped with oversized ball screws, roller linear guides, high-rigidity spindles, advanced numerical control systems and other components, which can meet the requirements of heavy cutting and precision processing of large workpieces and molds.
GMC series of machine tools adopts a gantry structure, with enlarged column and crossbeam box structures for support, ensuring excellent rigidity of the entire machine. The castings of the machine tools are made of HT300 high-grade material, which is of high strength, strong resistance to deformation, and has excellent shock absorption capacity.
GMC Series – Enlarged column and crossbeam, HT300 castings
| Model | GMC8038 |
| X-axis travel distance | 8000mm |
| Y-axis travel distance | 3800mm |
| Z-axis travel distance | 1250mm |
| Gantry Effective Width | 3800mm |
| Distance from the spindle face to the worktable surface | 250-1500mm |
| Workbench size | 3000x8000mm |
| Workbench T-slot (number - size x pitch) | 14-36x200mm |
| Max. load capacity of the workbench | 40T |
| Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed | 10/15/10 m/min |
| X axis Max. torque of motor | 144N.m |
| Y axis Max. torque of motor | 85.2N.m |
| Z axis Max. torque of motor | 105N.m |
| Max. spindle speed | 6000rpm |
| Spindle taper hole | BT50 |
| Spindle motor power | 22/26 KW |
| Tool magazine capacity | （Optional configuration）Disc-Type 24Tools |
| Max. weight of cutting tools | 20 KG |
| KVA Total power capacity | 65 |
| Machine size (L x W x H)cm | 2300x620x680 |
| Standard weight | 105 T |
