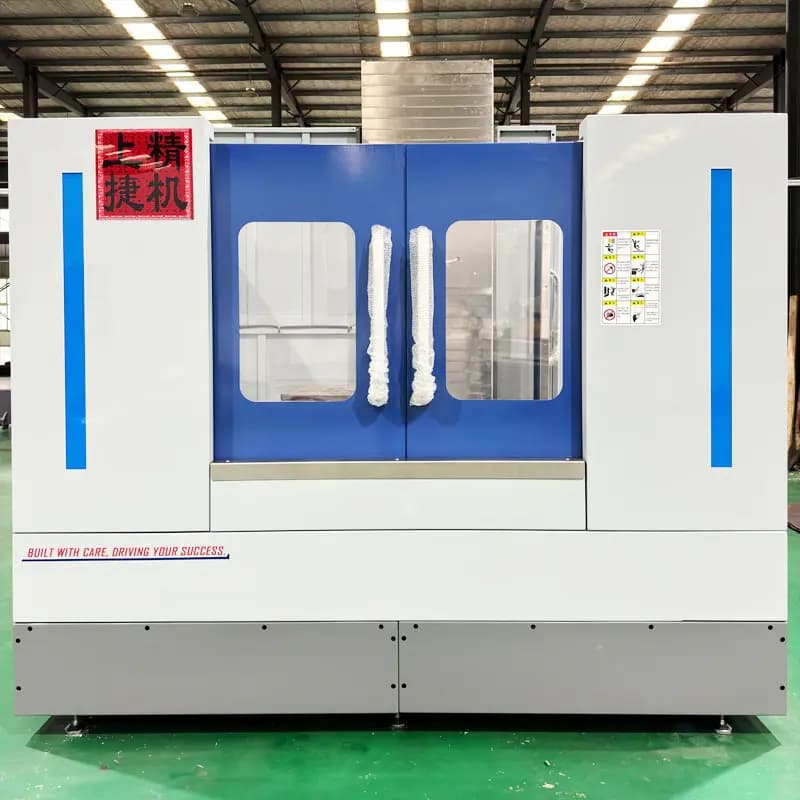

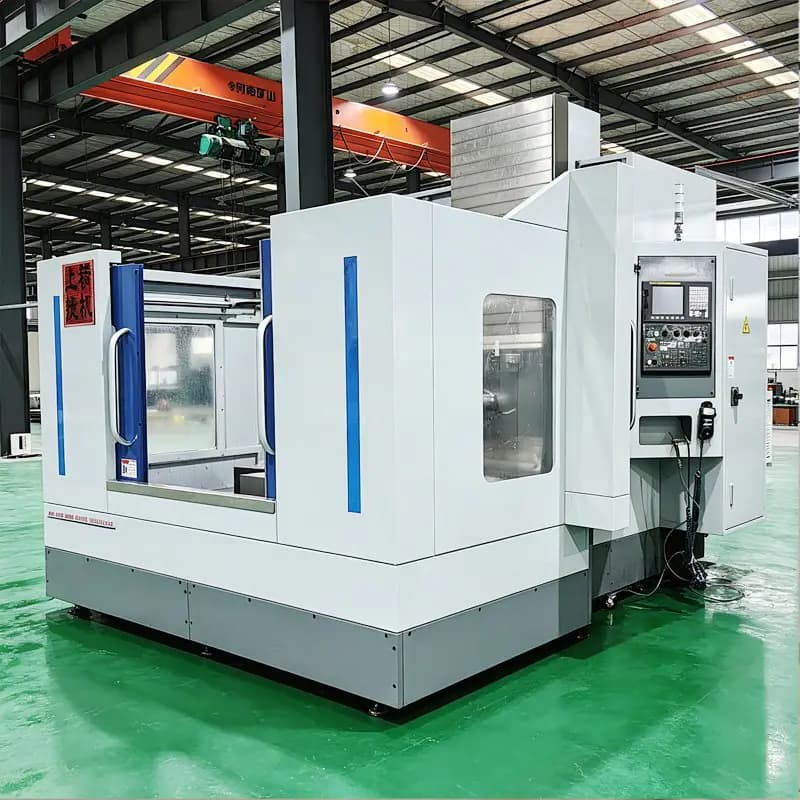

HMC500 Horizontal Machining Center
HMC Series – T-shaped integral bed, gantry-type column
5.0
Brand Name:
HERIDIK
Place of Origin:
China
Model Number:
HMC500
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
HMC series of machine tools adopts an advanced T-shaped integral bed structure, gantry-type column, and a front-hung box layout. It features strong rigidity and good precision retention. The entire machine tool is professionally designed and manufactured with the main focus on low center of gravity, anti-twist, anti-rust, heavy cutting, and high material removal efficiency.
HMC Series – T-shaped integral bed, gantry-type column
| Model | HMC500 |
| Workbench size | 500x500mm |
| Workbench T-slot (number - size x pitch) | 5-18x100mm |
| Max. load capacity of the workbench | 800KG |
| X-axis travel distance | 1100mm |
| Y-axis travel distance | 600mm |
| Z-axis travel distance | 650mm |
| Distance from the centerline of the main shaft to the worktable surface | -20-570mm |
| Distance from the spindle face to the center of the worktable | 180-800mm |
| Guide rail form | Precision Grade P roller-type linear guide |
| X,Y,Z fast movement speed | 30m/min |
| X axis Max. torque of motor | 55.8N.m |
| Y axis Max. torque of motor | 55.8N.m |
| Z axis Max. torque of motor | 69N.m |
| Max. spindle speed | 8000/12000rpm |
| Spindle taper hole | BT40 |
| Spindle motor power | 11/15 KW |
| Tool magazine capacity | Disc-Type 24Tools |
| Max. weight of cutting tools | 8KG(BT40) / 15KG(BT50) |
| Positioning accuracy | 0.01mm |
| Repeatability positioning accuracy | 0.006mm |
| Positioning accuracy of B-axis | 10” |
| Repeatability positioning accuracy of B-axis | 6” |
| Machine size (L x W x H)cm | 270×300×280 |
| Standard weight | 9.5 T |
